Client: SUNY Albany
Date:07/07/2012

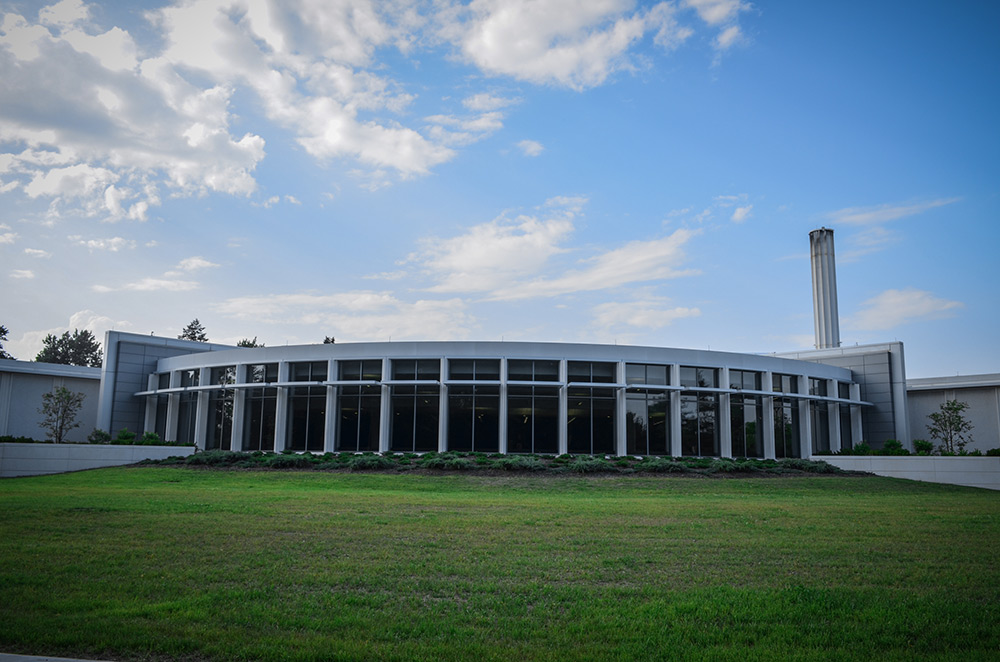

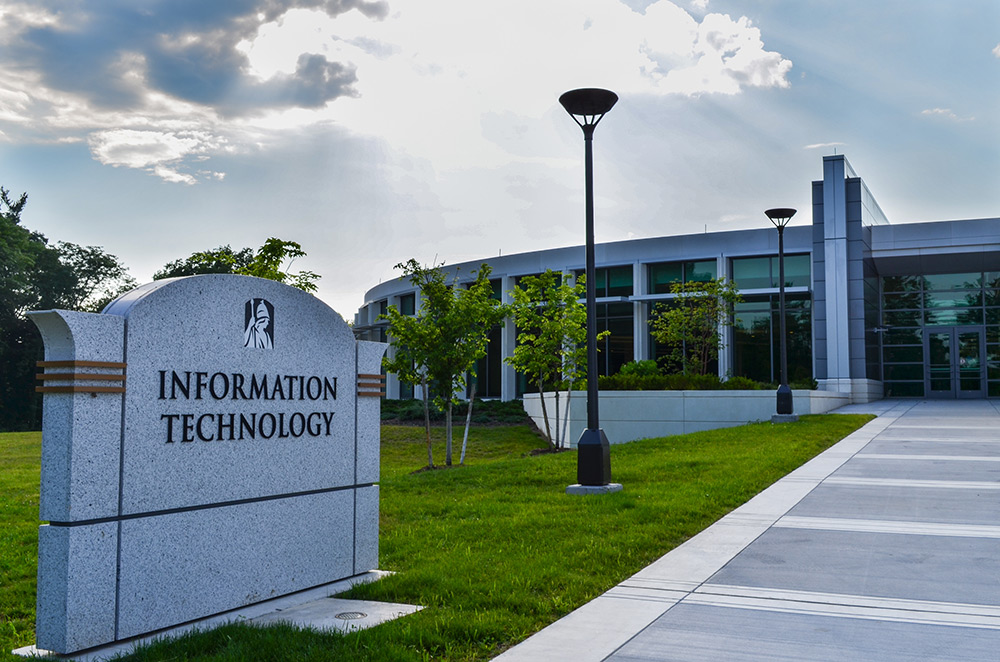

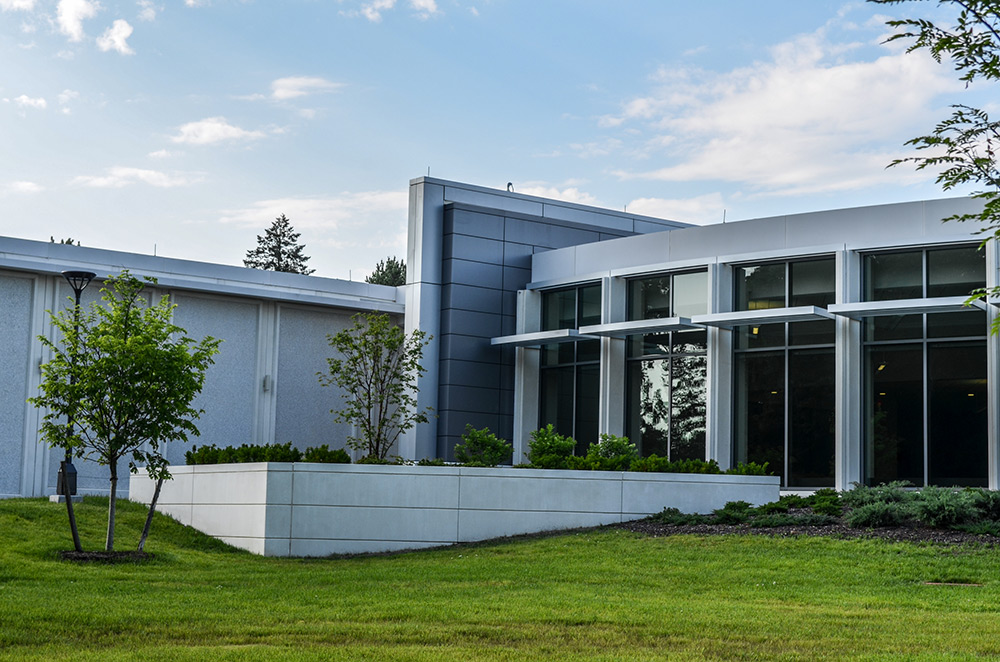

Info: SUNY Albany Campus - Information Technology Building
Kawneer
1600 System 1: 2 ½” x 7 ½” Curtain Wall System

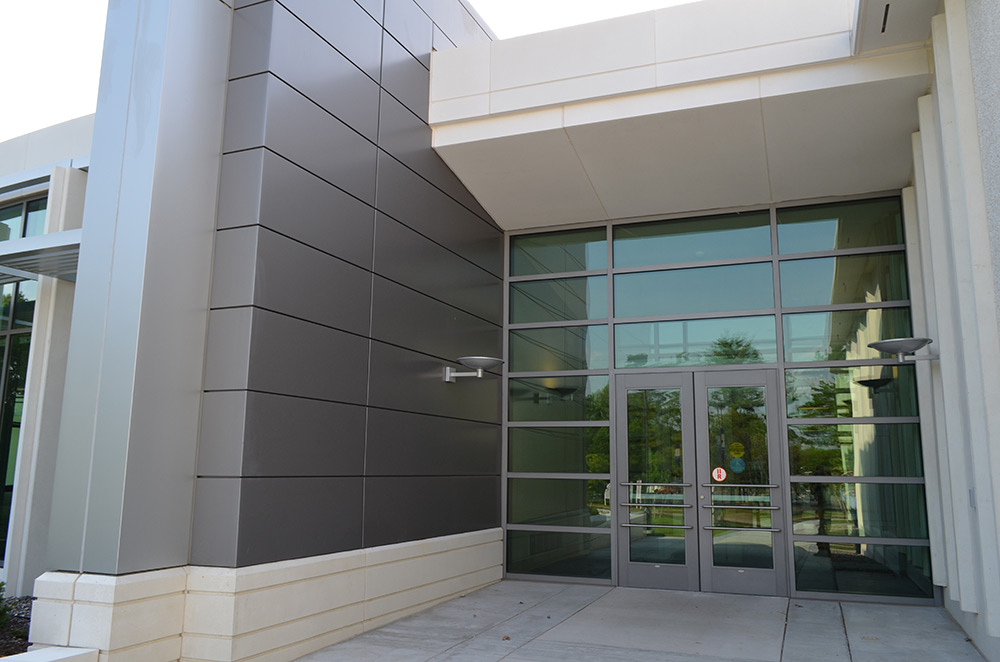

500 Wide Stile Heavy Wall Doors
Paint finish: PPG Duranar Pewter XL “Pewter”
Centria

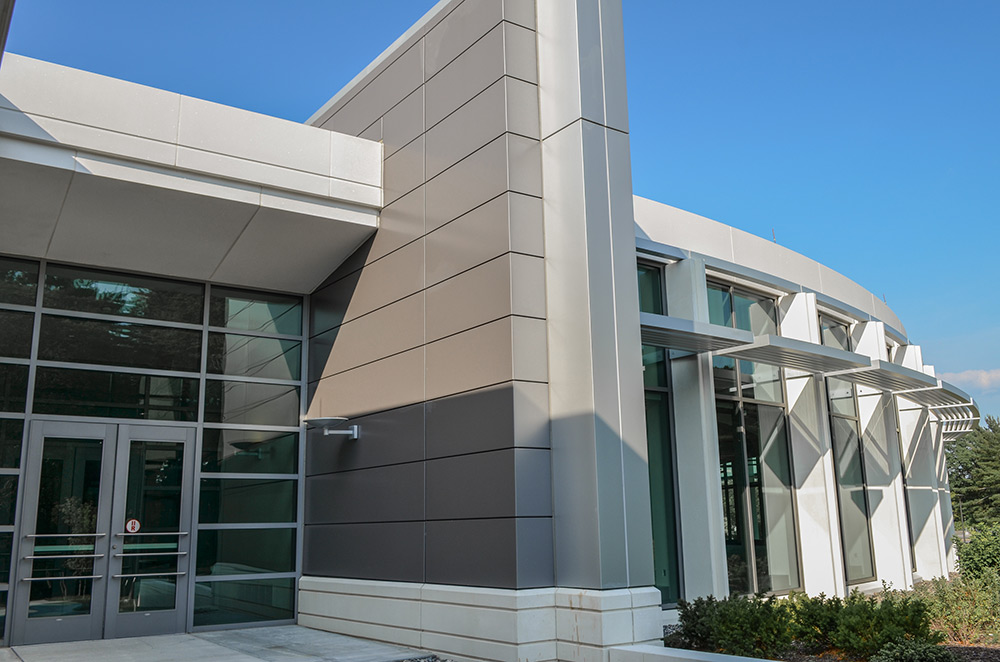

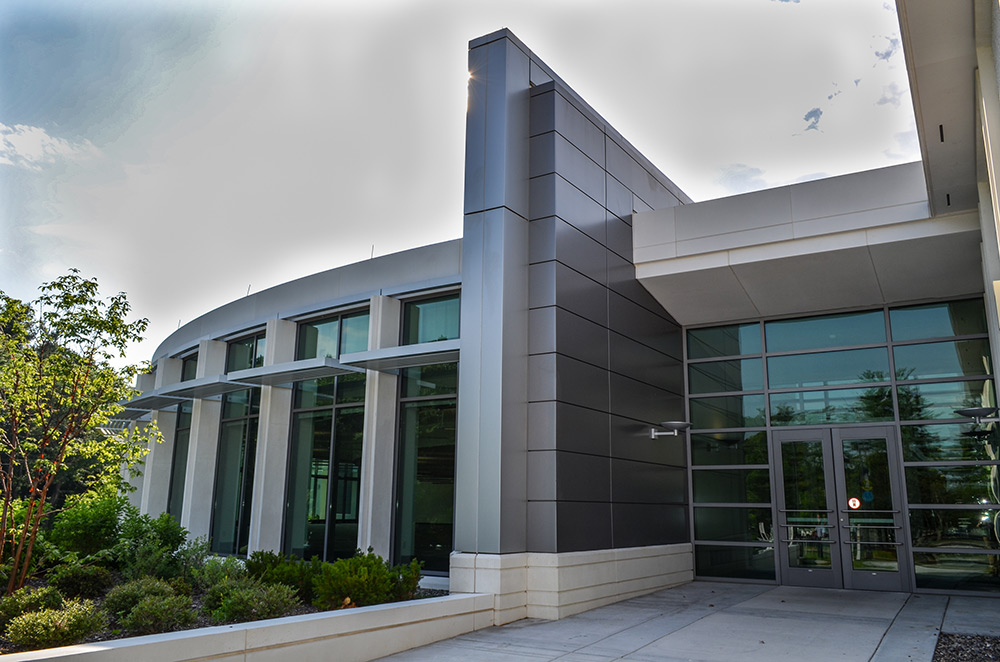

Formawall Dimension Series: 2” Insulated Metal Panels – Horizontal & Vertical application – Paint finish “Silversmith” & “Pewter”
Construction Specialties

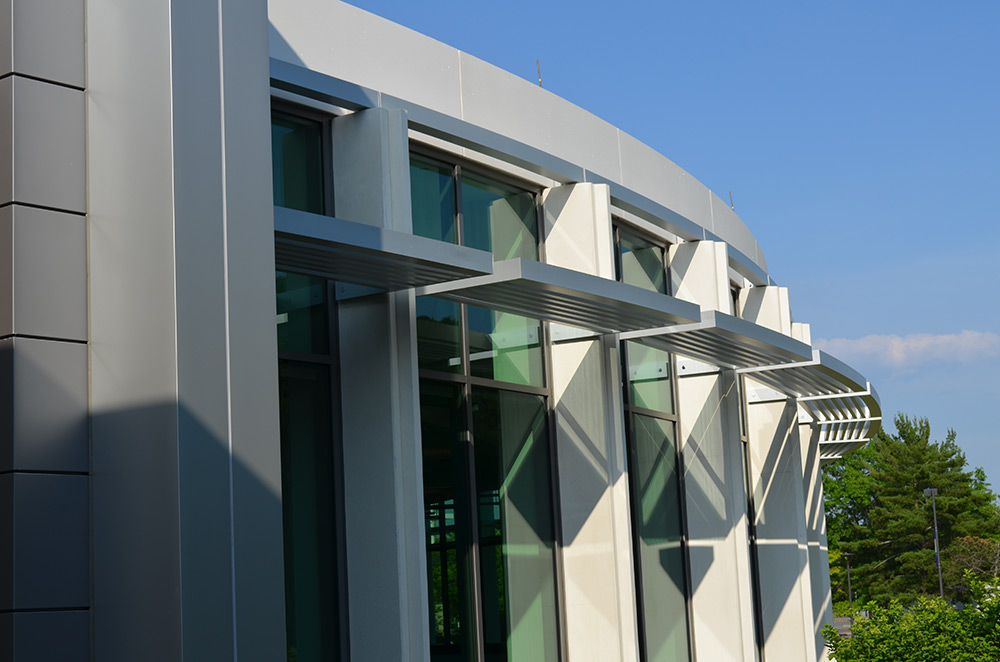

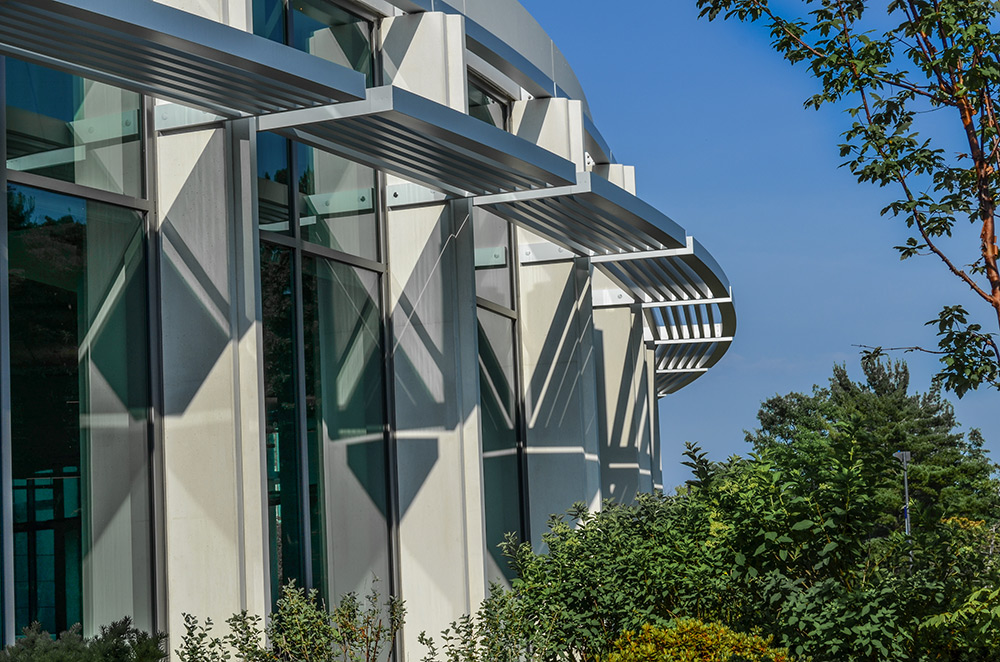

Aluminum Sunshades Model #100-3 (6” x 2” aluminum outriggers; 6” x 2” aluminum rectangular blades; 6” x 6” square aluminum tube fascia; 6” x 3” aluminum rear fascia) Painted PPG Duranar Mica to match anodized
Glazing at the curtain wall & aluminum doors
1” Insulated Units (1/4” Atlantica with PPG Solarban 60 Low E coating on the 2nd surface ½” airspace over ¼” Clear Tempered glass)
